Pilot Resources


Airport Information

Batten international Airport (RAC) is located in Racine, WI. The airport offers easy access to surrounding cities, fewer delays, and superior infrastructure and services.

RAC is on the inside edge of MKE Class-C airspace, simplifying and shortening aircraft arrival and departure times.

Passenger and Pilot gate open 24/7 for easy access. Local car rentals available.



Professional and recreational pilots alike appreciateRAC's convenient location and professional atmosphere.

Airport Runways

Airport Diagrams

Runway 4/22

  • Dimensions: 6574 x 100 ft. / 2004 x 30 m

  • Surface: concrete/grooved, in good condition

  • Weight bearing capacity:

  • PCN 18 /R/B/W/T

  • Single wheel: 50.0

  • Double wheel: 65.0

  • Runway edge lights: high intensity

  • RUNWAY 4  RUNWAY 22

  • Latitude: 42-45.260905N42-46.125987N

  • Longitude: 087-49.222710W087-48.340185W

  • Elevation: 672.4 ft.665.2 ft.

  • Traffic pattern: leftleft

  • Runway heading: 039 magnetic, 037 true219 magnetic, 217 true

  • Displaced threshold: 734 ft.390 ft.

  • Markings: precision, in good condition precision, in good condition

  • Visual slope indicator: 4-light PAPI on left (3.00 degrees glide path)4-light PAPI on left (3.00 degrees glide path)

  • Approach lights: MALSF: 1,400 foot medium intensity approach lighting system with sequenced flashers

  • Runway end identifier lights: noyes

  • Touchdown point: yes, no lightsyes, no lights

  • Instrument approach: ILS

  • Obstructions: 6 ft. road, 200 ft. from runway, 140 ft. right of centerline

  • 10 FT FENCE 53 FT FM RY END; RD 0 FT 200 FT FM THR.8 ft. rr, 200 ft. from runway, 50 ft. left of centerline

  • RR 60 FT FM THLD 230 FT L OF CNTRLN.

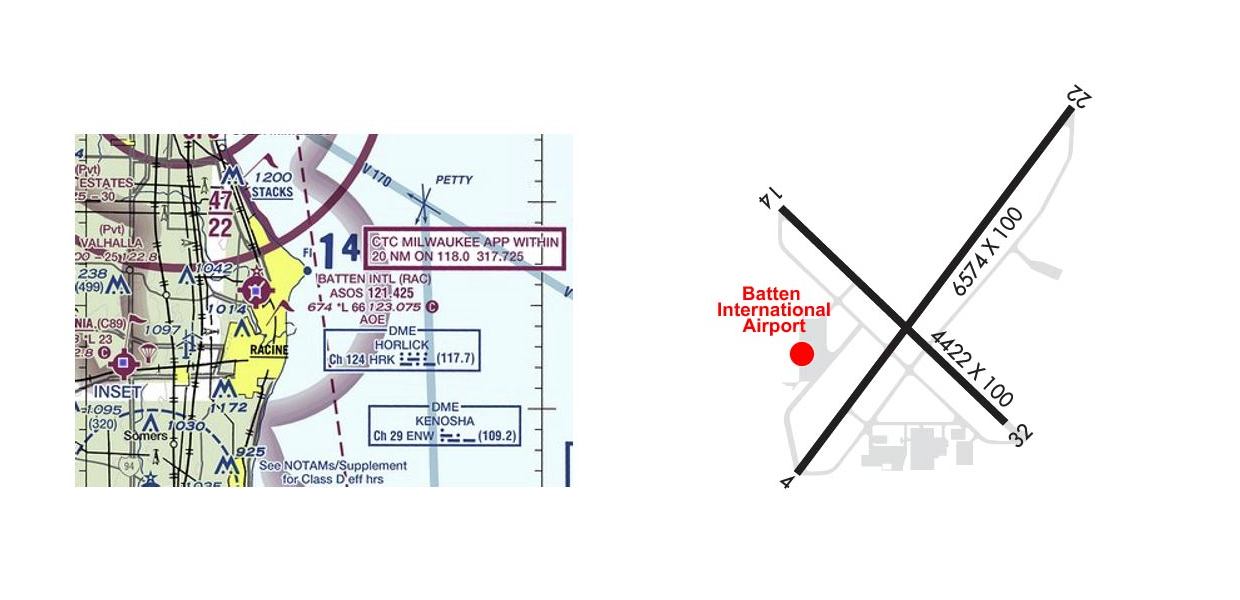

airport diagram photo.png

NOTAMS

Federal Aviation Administration: NOTAM Search (faa.gov)

ATC Services

Runway 14/32

  • Dimensions: 4422 x 100 ft. / 1348 x 30 m

  • Surface: asphalt, in fair condition

  • Weight bearing capacity:

  • Single wheel: 25.0

  • Double wheel: 35.0

  • Runway edge lights: medium intensity

  • RUNWAY 14  RUNWAY 32

  • Latitude: 42-45.886655N42-45.387265N

  • Longitude: 087-49.272570W087-48.553702W

  • Elevation: 673.6 ft.658.1 ft.

  • Traffic pattern: left

  • Runway heading: 135 magnetic, 133 true315 magnetic, 313 true

  • Displaced threshold: 806 ft.no

  • Markings: non-precision, in fair condition non-precision, in fair condition

  • Visual slope indicator: 4-light PAPI on left (4.00 degrees glide path)

  • Runway end identifier lights: yes

  • Touchdown point: yes, no lights yes, no lights

  • Obstructions: 15 ft. road, 200 ft. from runway

  • 10' FENCE 72' FM THR; ROAD AT 0-200' FM THR & HOUSE AT 200'FM THR.46 ft. tree, 800 ft. from runway, 175 ft. left of centerline, 13:1 slope to clear

Airport Communications

  • CTAF/UNICOM: 123.075

  • WX ASOS: 121.425 (262-635-0959)

  • MILWAUKEE APPROACH: 135.875

  • MILWAUKEE DEPARTURE: 135.875

  • CLEARANCE DELIVERY: 120.15

  • WX ASOS at ENW (11 nm SW): PHONE 262-652-7730

  • WX ASOS at MKE (12 nm N): 126.4 (414-489-2168)

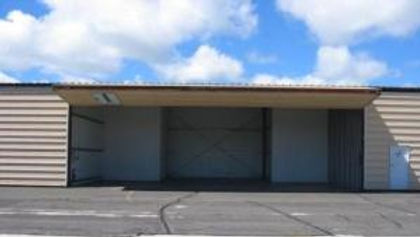

Hangar Availability & Corporate



Batten Airport proudly offers twenty-four hour security with full perimeter fences and electronic gates to enhance the safety of its customers. Hangars are available for rent or sale for many different sizes of aircraft (subject to availability). Land is also available for lease for those customers wishing to build their own facility. There are currently eight corporate facilities, 33 rental hangars and over 50 outside tiedowns on the airport. There are industrial park facilities with available development land contiguous to the airport; please contact airport management with your specific requirements.

Southeastern WI is experiencing low to no availability of aviation hangars, however Batten Field has just a couple left, please call and reserve now.

Location
Door #
Dimensions
Price
Bi-Fold Electric Door
T-Hangar A
plus 5% sales tax
Non-Heated
1A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP - OPEN FOR RENT
2A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
3A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
4A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
5A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
6A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
7A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
8A
42'W x36'L PLUS EXTRA 4'
$300/mo
43'6" X 14', 36' DEEP
9A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
10A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
11A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
12A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
13A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
14A
42'W x36'L
$300/mo
43'6" X 14', 36' DEEP
Location
Door #
Dimensions
Price
Bi-Fold Electric Door
T-Hangar B
plus 5% WI sales tax
Non-Heated
1B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
2B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
3B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
4B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
5B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
6B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
7B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
8B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
9B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
10B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
11B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
12B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
13B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
14B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
15B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
16B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
17B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
18B
39'W x 32'L
$270/mo
40' 6" X 12', 32' DEEP
Ranch-Style hangars
Door #
Dimensions
Price
Bi-Fold Electric Door
heated and/or non heated airport owned
$300-$480
depending on aircraft size and space
